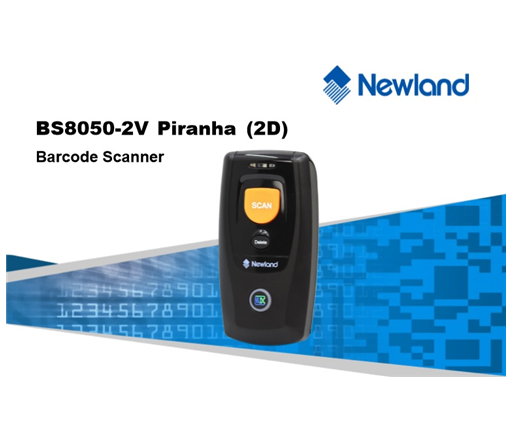

BS80502V Piranha(2D) Özellikleri - Performans Bilgileri
Image Sensor 752×480 CMOS
Symbologies
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, ISSN, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc. 2D: PDF417, QR Code, Data Matrix. Resolution ≥ 5 mil
Scan Angle**
Pitch ±50°@ 0°Roll and 0°Skew Roll ±360°@ 0°Pitch and 0°Skew Skew ±50°@ 0°Roll and 0°Pitch Minimum Symbol Contrast 30% Scan Rate 300 scans per second Interfaces Micro USB, Bluetooth HID/SPP profiles Bluetooth Transmission Range 50m (open space) Wireless Standards 2.4 – 2.5GHz ISM band, compatible with Bluetooth 4.0/3.0/2.1+EDR Memory Capacity 1MB (capable of storing the data of over 20,000 EAN-13 barcodes)
Mekanik/Elektrik Aksam Özellikleri
(L x W x H) 88.0 ×46.0 × 24.5mm Weight 62g Notification Sound, LED and vibration Battery 3.7V 900mA rechargeable Li-ion battery Battery Life 6 hours of continuous operation (Synchronous mode, scan and send data once per 6s) Charging Time 3.5 hours Power Adaptor(optional) Output: DC 5V, 500mA Input: AC 100 ~ 240V, 50~60Hz
Current
Operating Current 275mA (Bluetooth is on) Sleep Current 45mA
Çevresel Bilgiler
Operating Temperature -20°C ~50°C Storage Temperature -40°C ~ 80°C Humidity 5%~ 95%(non-condensing) Static Discharge ±8 KV (Contact discharge); ±15 KV(Air discharge) Drop 1.2m Sealing IP42
Sertifikalar
FCC Part15 Class B, CE EMC Class B **Test conditions: Code 39, 3 Bytes; Resolution=10mil; W:N=3:1; PCS=0.8; Barcode Height=11mm;Scan Distance=120mm, T=23 , Illumination=300 LUX
